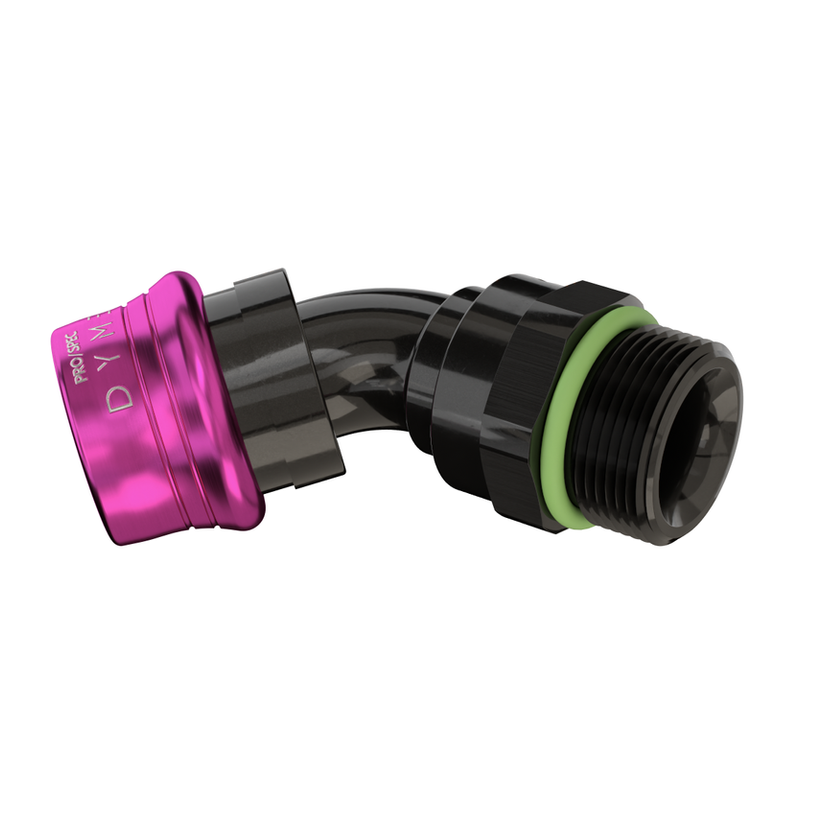

Dyme PRO/SPEC C-Type ORB Swivel (PS PURPLE)

Dyme PRO/SPEC™ C-Type ORB Swivel Swivel: Experience the ultimate flexibility and one-handed tool-free connection, with built in safety features including dual FLUOROK™ FKM O-rings sealing the barrel to the adapter, a secondary overlock channel to jam the pull ring, and a high visibility band to ensure your fitting is locked on at a glance.

The PRO/SPEC™ C-Type ORB Swivel fitting is designed to fit directly into the vehicle system, not the hose end, so it can be placed into the radiator, fuel system, oil cooler, oil pump etc for the tightest packaging, and features our acclaimed quick-release mechanism combined with a 180° swivel joint, sealed by dual FLUOROK™ FKM O-rings for maximum reliability.

🔑 KEY FEATURES

• Forged 6061-T6 Aluminum Body: Black anodized for corrosion resistance and durability. Precision forged and machined, eliminating welded weak points where possible for maximum strength.

• Swivel ORB (standard) connection standard for direct attachment to engine and other systems.

• 180° Swivel Adjustment: Ensures easy, stress-free hose routing in tight spaces. Allows post-crimp clocking adjustment for perfect hose alignment (no pre-clocking required).

• Dual FLUOROK™ FKM Seals: Superior chemical/heat resistance (constant 205°C/401°F). Dual sealing on the fluid connection AND swivel mechanism provides extra redundancy, safety, and virtually eliminates leak paths.

• Reusable Design: Fittings are not permanently joined to hoses so they can be reused in other configurations.

• Service Kits Available: Keep your fittings in peak condition for years with replacement seals and component kits.

✅ COMPATIBILITY

• PRO/SPEC™ C-Type works with these hoses; SUPERLEGGERA™ OBSIDILON™ Carbon PTFE (MAX 232°C/450F) & SUPERSTRASSE-C™ ALCOPRO™ CPE+EPDM+SS (MAX 150°C/302F). Fittings may be compatible with hoses from other brands, however Dyme cannot endorse or guarantee the performance of these combinations.

• FLUOROK™ FKM Seal Compatibility; Common fuels (gasoline, ethanol), motor oil, gear oil, transmission oil, coolant, air, (constant 205°C/401°F).

⚠️ NOT Compatible With: Methanol & Nitromethane fuels.

• For Methanol/Nitromethane:* Use PRO/SPEC HM-Type (METHODEX™ seals) or HX-Type (DYMAX-F™ seals), or FATBOY H-TYPE AN fittings.

• Size-Specific Cross-Compatibility:**

• PS06/AN06:** Fits SAE J2044 3/8" barbs.

• PS05/AN05:** Fits 5/16" SAE J2044 barbs.

• PS sizing is equivalent to AN for selection and flow.

⚠️ IMPORTANT SIZING NOTE:

All PRO/SPEC™ C-Type fittings require a matching PS-size adapter or C/D-type hose end adapters (Reusable or crimp-on) for your specific port. Ensure you select the correct adapter (e.g., a PS08 fitting requires a PS08 adapter, equivalent to AN8). Most options of interfacing thread type and standard are available, along with welding and fabrication options.

🏆 WHY CHOOSE PRO/SPEC™?

• Ultimate Service Convenience: Quickly remove or install parts reliably with the one-handed quick-release.

• Engineered Safety & Security:

  • A high-visibility neon band on the adapter male side confirms secure locking.

  • Optional secondary lock channel (clip/zip-tie behind pull ring) prevents accidental disconnection.

  • Double-Redundant Sealing: Critical leak paths feature dual seals for ultimate failure prevention.

• Ideal for Confined Areas: Eliminates wrench access issues and the need to remove components for hose service.

• Patented Innovation (US & International Patents Pending).

• Proven Under Extreme Conditions: Rigorously validated for vibration, pressure cycling, thermal shock, and tested to structural failure of adapter at 10,000 PSI.

• Track-Proven Reliability: Trusted by performance builders globally for critical fuel, oil, air, and coolant systems.

⚠️ Note: Crimping tool may be required. Refer to https://www.dymepsi.com/technical for detailed crimping specifications, hose preparation, and full compatibility data.

US & International Patents Pending.
